Serigrafi Baskı Teknolojisi ile Esnek Enerji Depolama Cihazlarının Geliştirilmesi. Development of Flexible Energy Storage Devices Using Screen Printing Technology.

TÜBİTAK 2209-A Üniversite Öğrencileri Araştırma Projeleri Destek Programı kapsamında proje ortağı olarak yer aldığım bir çalışma. Proje 7 Nisan 2025’te başladı, 31 Temmuz 2026’da tamamlandı. Amaç, esnek elektroniklerde kullanılabilecek süperkapasitör elektrotlarını serigrafiyle basabilmekti. Bunun için toksik çözücü içermeyen, su bazlı bir karbon mürekkebi geliştirdik, elektrotları basıp düğme hücre olarak birleştirdik ve ölçtük.

Arka plan

Süperkapasitörler enerjiyi elektrot ile elektrolit arasında oluşan elektriksel çift tabakada depolar [1]. Şarj ve deşarj kimyasal bir tepkimeye dayanmadığı için pillere göre daha yüksek güç yoğunluğu ve çok daha uzun çevrim ömrü sunarlar, karşılığında enerji yoğunlukları düşüktür [2]. Elektrot malzemesi olarak en sık, yüzey alanı yüksek ve ucuz olan karbon esaslı malzemeler kullanılır [3]. Aktif karbon kapasitansın ana kaynağıdır, karbon karası ve grafen nanoplakalar (GNP) ise iletken bir ağ kurup seri direnci düşürür.

Elektrotları basmak için serigrafiyi seçtik. Düşük maliyetli ve ölçeklenebilir bir yöntem, basılan filmin kalınlığı ve geometrisi üzerinde de kontrol sağlıyor [4]. İşin zor tarafı mürekkep: rakle geçerken viskozitesi düşmeli, baskıdan sonra geri kazanmalı. Geleneksel elektrot üretimi NMP gibi toksik çözücülere dayanır. Biz suda çözünen polimerleri (PAA, PVA, PVP) bağlayıcı olarak kullanıp su bazlı bir mürekkep hedefledik.

Denemeler

Çalışmanın büyük kısmı Şubat–Nisan 2026’daki mürekkep denemeleriydi. Aktif karbon, karbon karası ya da GNP ve farklı bağlayıcılarla (PAA, PVA, PVP) çok sayıda karışım hazırlayıp baskı kalitesine baktık. Dönüm noktaları şunlardı:

  • Bağlayıcı seçimi (Şubat–Nisan başı). Molekül ağırlığı ~150.000 olan Karbomer PAA aktif malzemeyle homojen karışmadı. PVA hızlı karıştı ama taneli bir yüzey bıraktı ve PAA ile uyumsuz çıktı. Bunun zincirler arasındaki güçlü hidrojen bağlarından kaynaklandığını düşünüyoruz. En kararlı mürekkebi Mv ~450.000 olan SİGMA PAA verdi.
  • Tekrarlanabilirlik (14–15 Nisan). Aynı reçeteyle tutarlı sonuç alamıyorduk. Nedeni yetersiz karıştırmadan kaynaklanan karbon topaklanmasıydı. Karıştırma süresini yaklaşık 3 saatten 12 saate çıkarınca düzeldi. Yüzey kırılgan kaldığı için yardımcı bağlayıcı olarak PVP ekledik. Literatürde PVP’nin karbon esaslı mürekkeplerde topaklanmayı önleyip film bütünlüğünü iyileştirdiği bildiriliyor [5].
  • Nihai reçete (21–28 Nisan). PVP ve SİGMA PAA’yı birlikte kullanıp karbon karası yerine GNP koyduk. Kuruma hızı, esneklik ve yüzey yeterli bulundu.

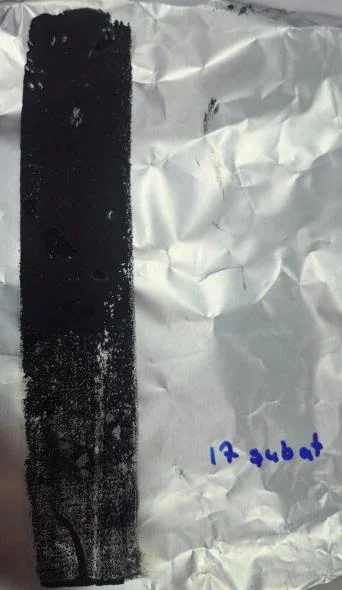

17 Şubat baskı denemesi
17 Şubat: ilk deneme

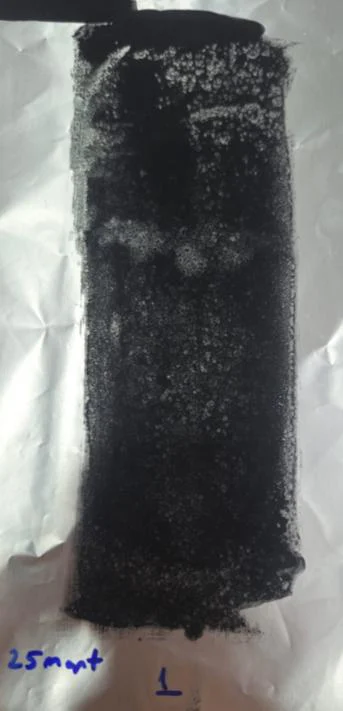

25 Mart baskı denemesi
25 Mart: karbon karası artırıldı

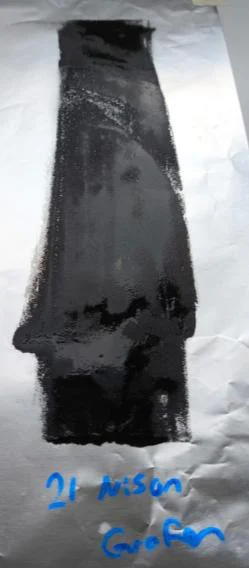

21 Nisan baskı denemesi
21 Nisan: GNP'li mürekkep

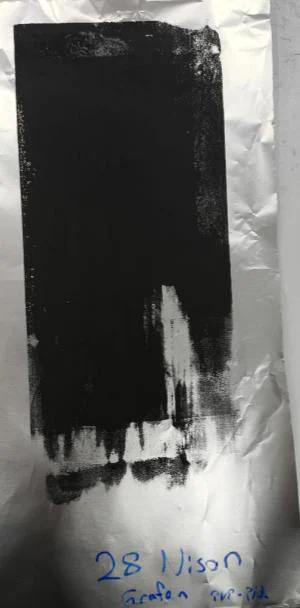

28 Nisan baskı denemesi
28 Nisan: nihai reçete

Nihai reçete

Bağlayıcı olarak PVP ve SİGMA PAA, iletken katkı olarak GNP, çözücü olarak saf su kullanıldı. Kütlece oran 9,5:0,5:1 (aktif karbon : GNP : bağlayıcı). Basılan film esnetildiğinde çatlamadı ve tabakalaşmadı. Reçeteyi 3 kat ölçeğinde de hazırlayıp bastık, baskıdan sonra çatlak ya da homojensizlik görülmedi. Yani formülasyon ölçeklenebilir çıktı. Elektrotlar alüminyum folyo üzerine, 40×45 mm desenle ve üst üste birkaç baskı halinde basıldı, her baskıdan sonra 80 °C’de kurutuldu.

Hücre montajı ve ölçümler

Elektrotları CR2032 düğme hücre boyutunda kesip elektrolit olarak lityum perklorat (LiClO4) ile ıslattık, separatörle birlikte hücreyi birleştirdik. İlk hücre 4 Mayıs 2026’da kuruldu. 5 Mayıs’ta GAMRY Interface 1000 ile elektrokimyasal empedans spektroskopisi (EİS) ve çevrimsel voltametri (CV) ölçümlerini yaptık.

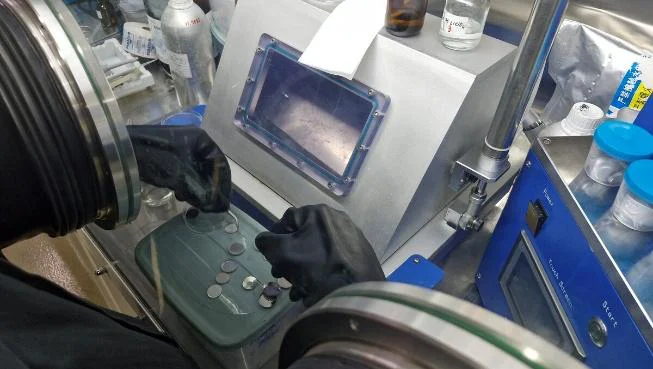

Düğme hücre parçaları, eldivenli kabin içinde
Düğme hücre montajı

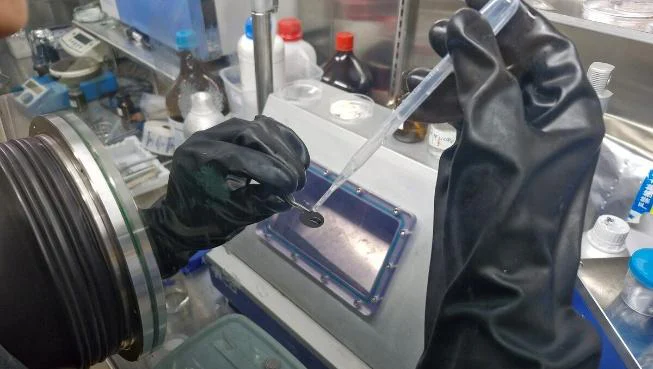

Elektrodun elektrolitle ıslatılması
Elektrodun elektrolitle ıslatılması

Nyquist eğrisinde yüksek frekanstaki kesişim eşdeğer seri direnci, düşük frekanslarda dikeye yakın artış ise kapasitif davranışı gösterir. CV eğrilerinin dikdörtgene yakın biçimi enerji depolamanın ağırlıklı olarak elektriksel çift tabaka mekanizmasıyla olduğuna işaret eder [6]. Ölçümler, serigrafiyle ürettiğimiz elektrotların düğme hücrede çalıştığını ve kapasitif davranış gösterdiğini doğruladı.

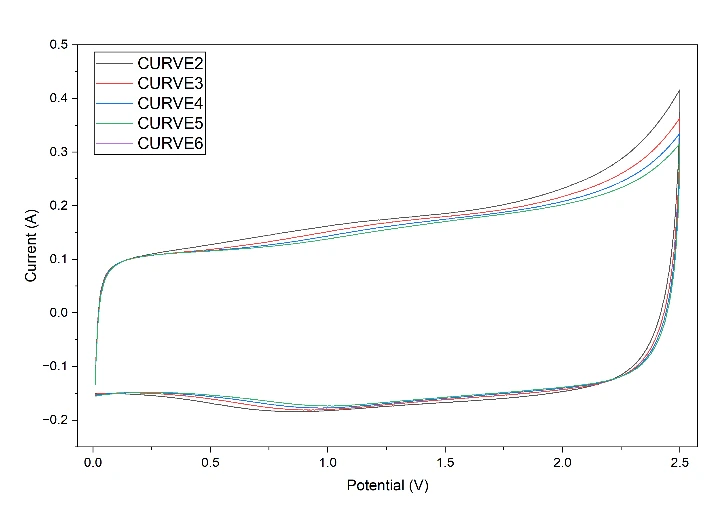

Çevrimsel voltametri eğrileri
Çevrimsel voltametri (CV) eğrileri

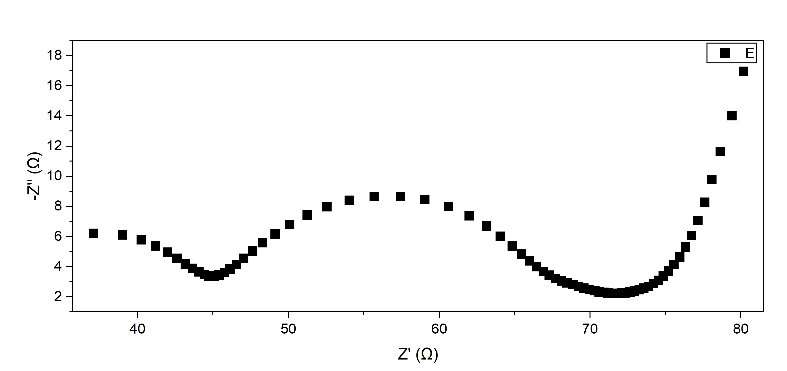

Nyquist eğrisi
Nyquist eğrisi (EİS)

Yapısal karakterizasyon

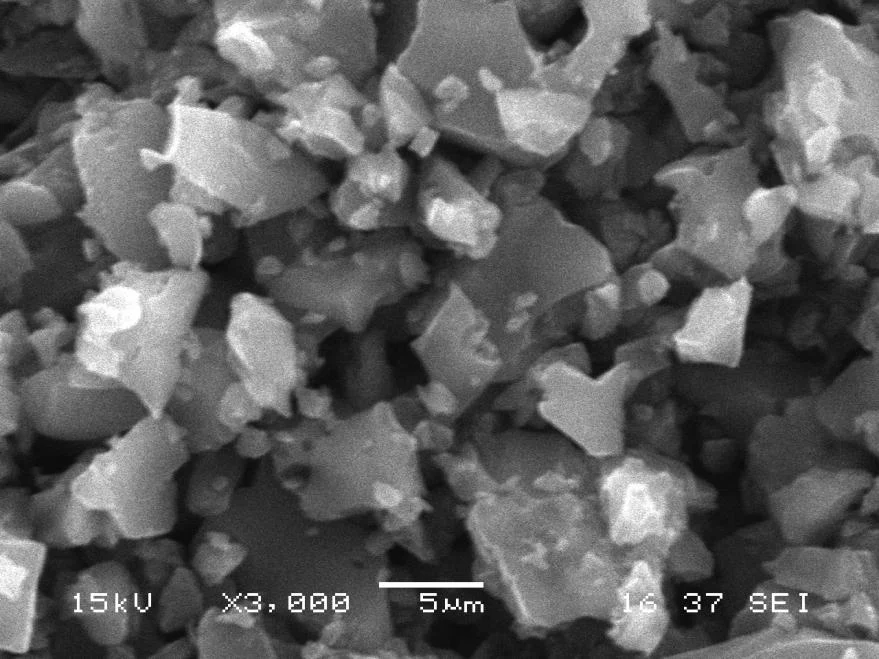

Basılan elektrodun yüzeyini taramalı elektron mikroskobuyla (SEM, 15 kV), faz yapısını X-ışını kırınımıyla (XRD) inceledik. SEM görüntüsünde aktif karbon taneleri ve GNP plakaları çatlaksız, gözenekli bir ağ oluşturuyor. Bu gözenekli yapı, elektrolit iyonlarının erişebileceği yüzey alanını yani çift tabaka kapasitansını etkiler [3]. XRD deseninde aktif karbonun amorf yapısına ait geniş (002) tümseği ve GNP’ye ait zayıf bir yansıma var. Keskin pikler akım toplayıcı alüminyum folyoya ait. Beklenen bileşenler dışında yeni bir faz çıkmadı, yani mürekkep bileşenleri üretim sırasında kimyasal olarak bozunmadı.

Basılan elektrot yüzeyinin SEM görüntüsü
Elektrot yüzeyi, SEM (3.000×, 15 kV, ölçek çubuğu 5 µm)

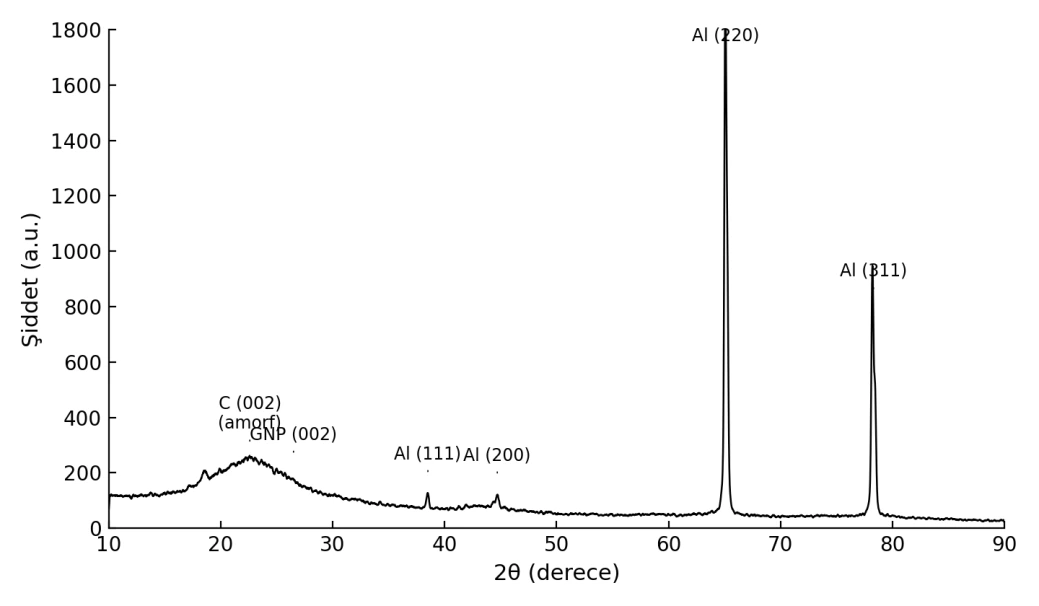

Basılan elektrodun XRD deseni
Basılan elektrodun XRD deseni

Sonuç

Toksik organik çözücü kullanmadan, serigrafiyle basılabilen su bazlı bir mürekkep geliştirdik ve bununla çalışan, esnek bir süperkapasitör elektrodu ürettik. Bu çalışmadan çıkardıklarım:

  • Bağlayıcının türü ve molekül ağırlığı mürekkebin viskozitesini ve basılan yüzeyin kalitesini belirliyor. Polimerlerin birbiriyle uyumu da ön denemelerle doğrulanmalı.
  • Tekrarlanabilirlik için karıştırma süresi belirleyici, yetersiz karıştırma topaklanmaya yol açıyor.

Kaynaklar

  1. Conway, B. E. (1999). Electrochemical Supercapacitors: Scientific Fundamentals and Technological Applications. Kluwer Academic/Plenum Publishers. (Kitap, DOI yok)
  2. Simon, P., & Gogotsi, Y. (2008). Materials for electrochemical capacitors. Nature Materials, 7(11), 845–854. https://doi.org/10.1038/nmat2297
  3. Zhang, L. L., & Zhao, X. S. (2009). Carbon-based materials as supercapacitor electrodes. Chemical Society Reviews, 38(9), 2520–2531. https://doi.org/10.1039/b813846j
  4. Kaempgen, M., Chan, C. K., Ma, J., Cui, Y., & Gruner, G. (2009). Printable thin film supercapacitors using single-walled carbon nanotubes. Nano Letters, 9(5), 1872–1876. https://doi.org/10.1021/nl8038579
  5. Huang, Q., & Zhu, Y. (2019). Printing conductive nanomaterials for flexible and stretchable electronics: A review of materials, processes, and applications. Advanced Materials Technologies, 4(5), 1800546. https://doi.org/10.1002/admt.201800546
  6. Stoller, M. D., & Ruoff, R. S. (2010). Best practice methods for determining an electrode material’s performance for ultracapacitors. Energy & Environmental Science, 3(9), 1294–1301. https://doi.org/10.1039/c0ee00074d
